NK by Neurtek

NK by NEURTEK
In-house manufacturing for paint and coatings quality control

NK by NEURTEK is our own brand, created to deliver high-precision solutions for quality control in paint and coatings.

We design and manufacture reliable, robust, and user-friendly instruments, backed by over 40 years of experience working alongside laboratories, paint manufacturers, and surface quality experts.

With NK by NEURTEK, we reaffirm our commitment to innovation, technical support, and excellence in every test.

45 years of experiencia

NEURTEK started its activity in 1979 and specialised in providing equipment and technical solutions for quality control and R&R&I, amongst which it is worth highlighting automotive, aerospace, linings, research centres and many more.

NEURTEK is also a Calibration Laboratory accredited by ENAC according to UNE-EN ISO/IEC 17025 (Accreditation No. 117/LC10.084) and a Certified Company according to ISO 9001:2000.

Closeness and Global Presence

We believe in a personalised service since we are well aware that each client is different. As such, we have a commercial network distributed throughout the Spanish mainland and also have an international network of representatives in various countries such as Morocco, Turkey, Russia, Poland and Latin America.

Own Technical Service

Trained and specialised to offer personalised and efficient support.

Showroom for Tests and Demonstrations

We have a showroom where you can see our quality control equipment for paint and coatings.
Contact us to arrange a demo.

Precision Grindometer

This instrument is used to determine the degree of fineness of grinding of paints. It is also used in the food industry (e.g. chocolate) and pharmaceutical (creams).

Temperature contol jacket for viscosity cup

The NEURTEK Temperature Control Jacket for Viscosity Cup is a double jacketed casing of anodised aluminium with built-in spirit level to bring the viscosity beaker to the required temperature with cooled and heated liquids. Ref. 0201320 Thermal jacket for ISO viscosity flow cups Ref. 0201310 Thermal jacket for FORD / DIN viscosity flow cups

Pfund Thickness Gauge

This instrument consists of two concentric cylinders, one sliding inside the other. A spherical glass lens is fitted to the end of the central cylinder and when pressed into the wet film it leaves a trace. The diameter of this mark varies depending on the thickness of the coating, which can easily be assessed from the conversion table supplied with the instrument. • Ideal for measuring the thickness of translucent products (varnish, oils etc.) • Measurement range of 2.25 - 360µm (0.09 - 14.17mils)

Wet Film Thickness Gauge WG

Wet Film Thickness Gauge WG is a hexagonal/octagonal precision measuring comb made of heavy stainless steel. The high-grade stainless steel will not be affected by acid or base elements. Models available for several different applications.

Wet Film Thickness Gauge

A wheel-shaped thickness gauge made of stainless steel to check thickness of fresh and wet film

Cross Cut tester NK2000

The new tester benefits from the ergonomic design of the handle. It features improved surface adaptability for curved surfaces and usability.

Multifunctional Master Paint Plate

The multifunctional Paint Plate is a pocket-sized tool for coating professionals to check film thickness, adherence, edge coverage, viscosity, and more.

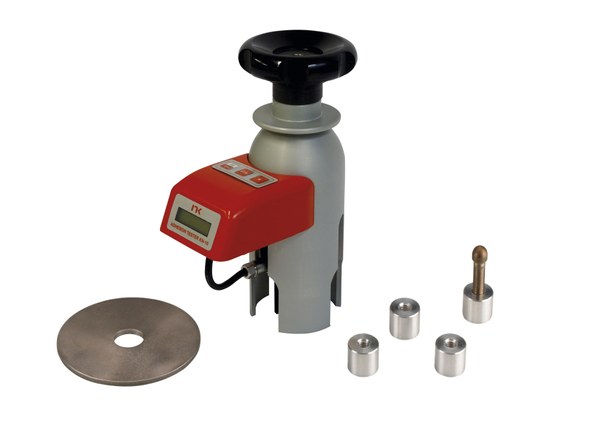

Pull / Push Adhesion, Electronic Adhesion Tester KN-10

Equipment developed to measure the adhesion of paint films, coatings and building materials on top of any substrate.

Dollies

Dollies for adherence tests in coatings, galvanic films and building materials.

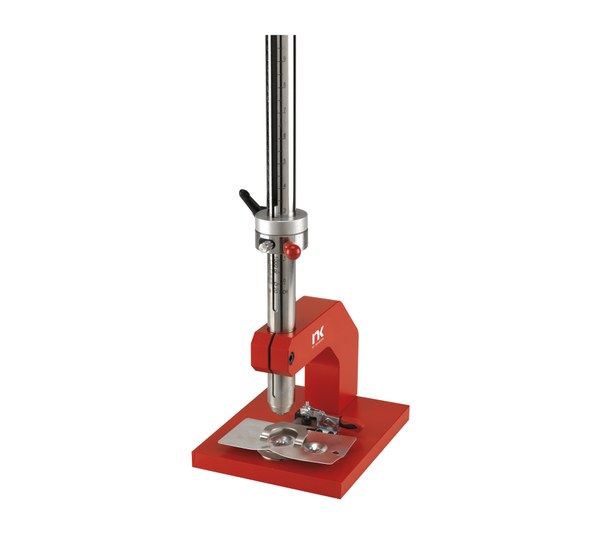

Impact tester for paint

Impact test of paint coatings applied to metal base. ISO, DIN, ASTM.

Hand-Held Enamel Impact Tester

Hand-Held Impact Tester, for impact resistance test of flat or curved vitrified enamel covered surfaces according to WAGNER, in accordance with DIN 51155 and ISO 4532 norms, and of “HPL” high pressure decorative laminated (films of cellulosed fiber impregnated with thermostable resins), this is interior furnishing, according to EN ISO 438-2.

Stain stell ball for decorative laminates

Stain steel ball, Ø 42,8mm and 324 gr weight, complied with UNE EN 438-2 for decorative laminates, on the impact section.

Cupping Tester

Manual cupping tester to determine the resistance of coatings of paints, varnishes and related products to cracking or adhesion of the substrate in different deformation conditions, according to UNE-EN ISO 1520.

Cylindrical Mandrels

This cylindrical mandrel bend tester consists of a robust frame which has a bending lever, with height adjustable rollers and a sliding vice for the sample. Thanks to its design, the instrument can be adapted to the diameter of the mandrel used are bent perfectly and regularly over the mandrels

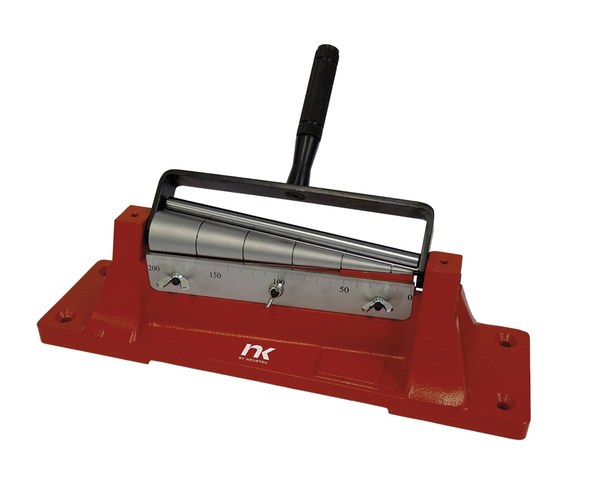

Conical Mandrel Bend Tester

conical mandrel tester is used in the determination of elasticity, adhesion and elongation of paint on sheet metal. The specimen can be bent on part of or along the entire length of the mandrel, and the results (cracks) corresponding to different test diameters can be observed in a single operation.

Aluminium test panels

Test panels reduce the variability of the surface properties of metals to the minimum and offer a reproducible and uniform test surface.

Steel test panels

Manufactured in low carbon steel, suitable for cupping test. Complies with UNE EN ISO 1514. Dimensions: 140 x 70 x 0.8 mm and 152 x 76 x 0.8 mm.

Persoz & König Pendulum Hardness Tester

Device developed for paints and inks superficial hardness measurement.

Pencil Hardness Tests

This is a simple and effective technique to evaluate the hardness of many coatings.

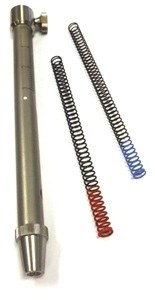

Hardness Test Kit

The Hardness Test is a pocket device for testing hardness and scratch resistance of coatings, lacquers, plastics, and related materials.

Sikkens NK3000 Scratch Tool

Cutting tool especially designed for cutting panels or specimens with coatings or test panels for salt fog corrosion tests, as described in the standards ISO 12944-6:2018, ISO 17872, ISO 9227.

Hegman Grindometer

Intended for measuring the thinness of grind of paints, lacquers, varnishes, inks, pastes etc. Indispensable in the manufacture of paints and airless applications, when the appropriate nozzle is to be chosen.

Stainless Steel Pycnometer

This Pycnometer is a stainless steel precision instrument to determine the specific weight of paints and similar products.

Digital Resistivitimeter RE45

Equipment developed to measure the resistivity of paints, varnishes and liquids in a fast and precise way. Indispensable for the correct functioning of electrostatic paint installations. It helps saving paint and reducing paint waste.

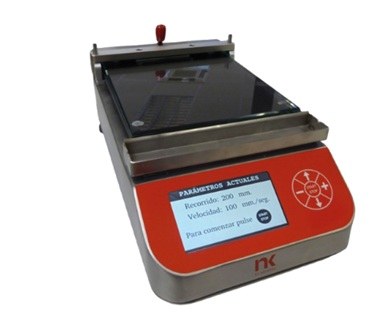

ATX Automatic Applicator

NEURTEK´s ATX automatic equipment ensures linear motion and application of the film with repetitive and high quality results, thus avoiding variable factors.

Wire bar coaters

These bars are ideal for applying inks and coatings onto flexible materials like paper, card, textiles, leather, and more with uniform precision.

Quadrangular Applicator

Paint spreader of constant coat thickness. Can be supplied in 6 standard versions, each with four groove depths or coat thicknesses. Standard effective width is 60mm, but special widths and micrometric thicknesses will be manufactured to order.

Baker Universal Applicator

Film applicator with variable height adjustable through and eccentric and graduated drum. Coat thickness adjustable from 0 to 250 microns.

Baker Applicator

Film applicator of constant coat thickness, with four pre-defined coat application heights.

Bird film applicator

Bird type film applicator with four standard coat application heights: 50, 100, 150 and 200 microns.

“Economic” Contrast cards, for paint tests, with UV component

Opacity Chart

Opacity Chart refers to charts on which the test pattern is a simple combination of black and white areas, large enough for wide aperture reflectance instruments, as well as for visual opacity and color observations. Leneta opacity charts comply with all test methods specifying charts of such design.
